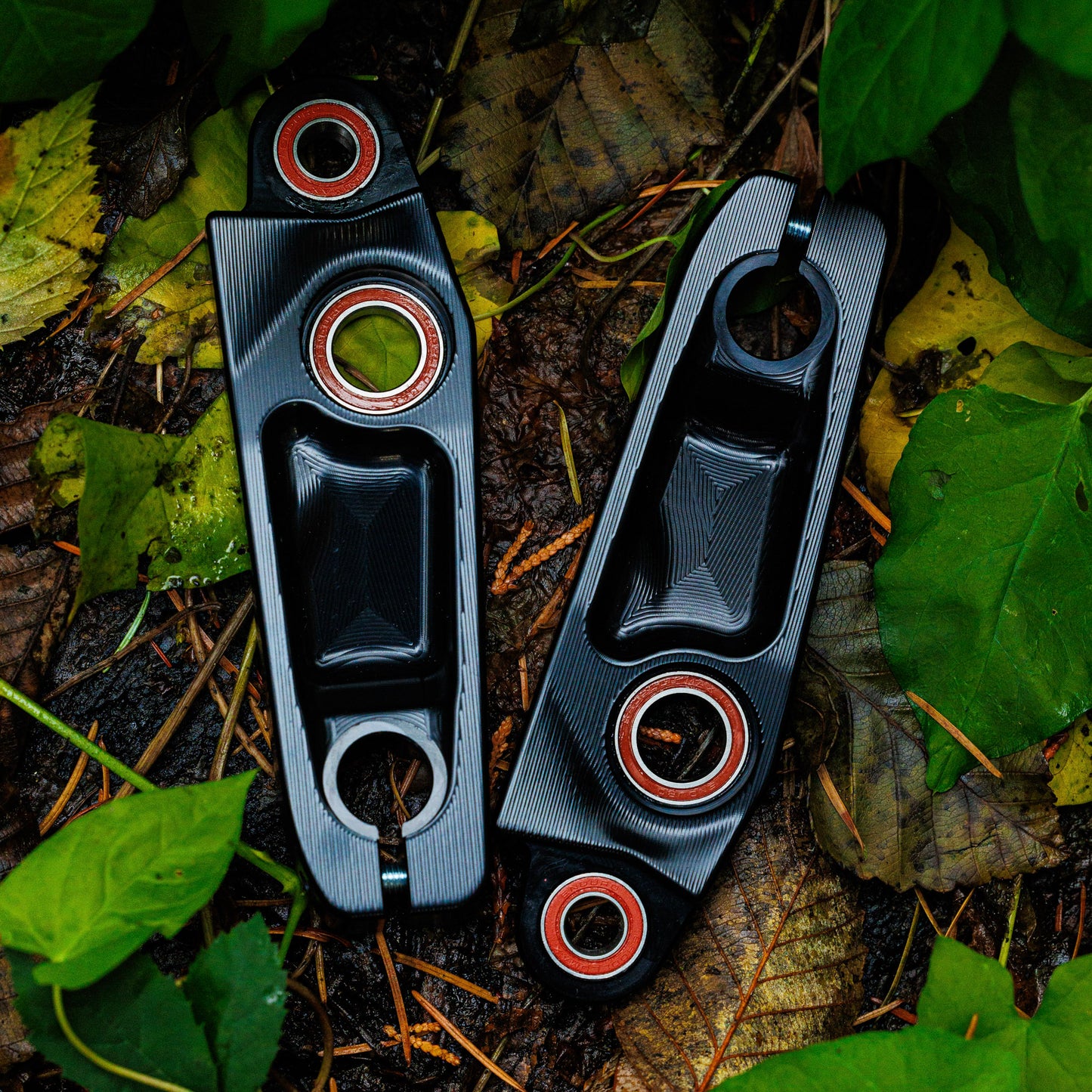

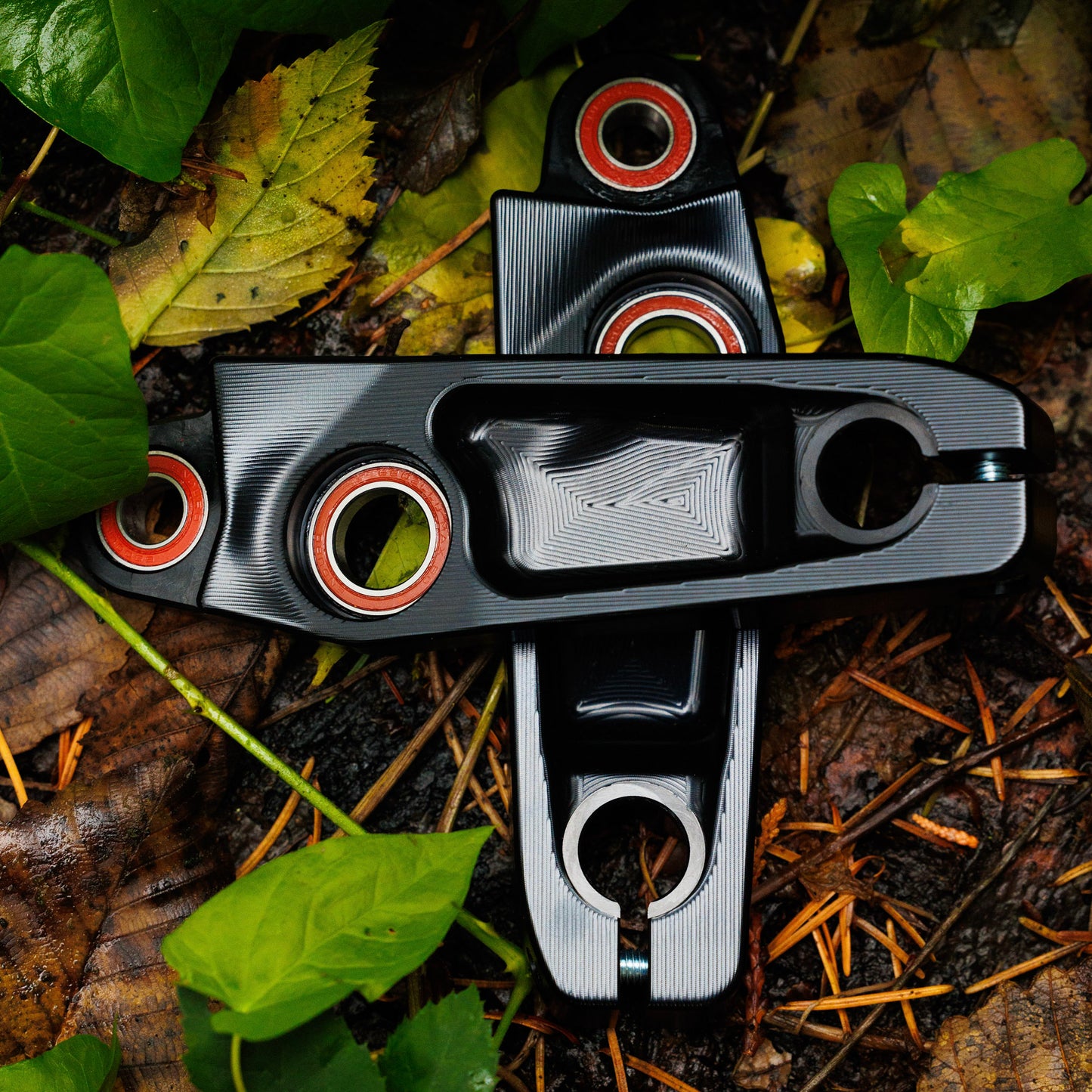

Orbea Rise Link (2020-2022)

You asked (quite a lot) and here it finally is! This link is designed to increase travel to 150mm while significantly boosting progression. If you're wondering what this might be similar to, think Stumpjumper Evo link. The increase in progression allows you to keep a super light and active off the top feel without having to sacrifice bottom out resistance. For descents the improvement is substantial. Let your Rise stretch it's legs a little. All links come with MAX bearings installed and are completely ready to bolt up.

We have also done a little to remedy the issue of links walking out on the spline at the main pivot due to side loading. The pinch bolt has been flipped to the outside of the link so that a tighter clamp on the spline can be achieved. Tighter clamp on the spline makes it much harder for the link to slide outwards. If you are looking for an additional layer or protection on top of that, check out our preload kit. It is the true 100% solution to links migrating outwards. The kit allows you to truly clamp across the inner race of the seat tube pivot bearings. It contains a washer, threaded nut, bearing spacer, and through bolt. It is designed to be run with our link and, as such, fitment is not guaranteed with the stock link.

Specifications:

• Fits Orbea Rise (2020 to 2022)
• Travel: 150mm (with stock 210×55mm shock)
• Progression increases to 27% compared to 20% with stock link
• Keeps geometry identical to stock geometry
• Sealed Enduro MAX bearings
• CNC’d out of 6061-T6 Aluminum

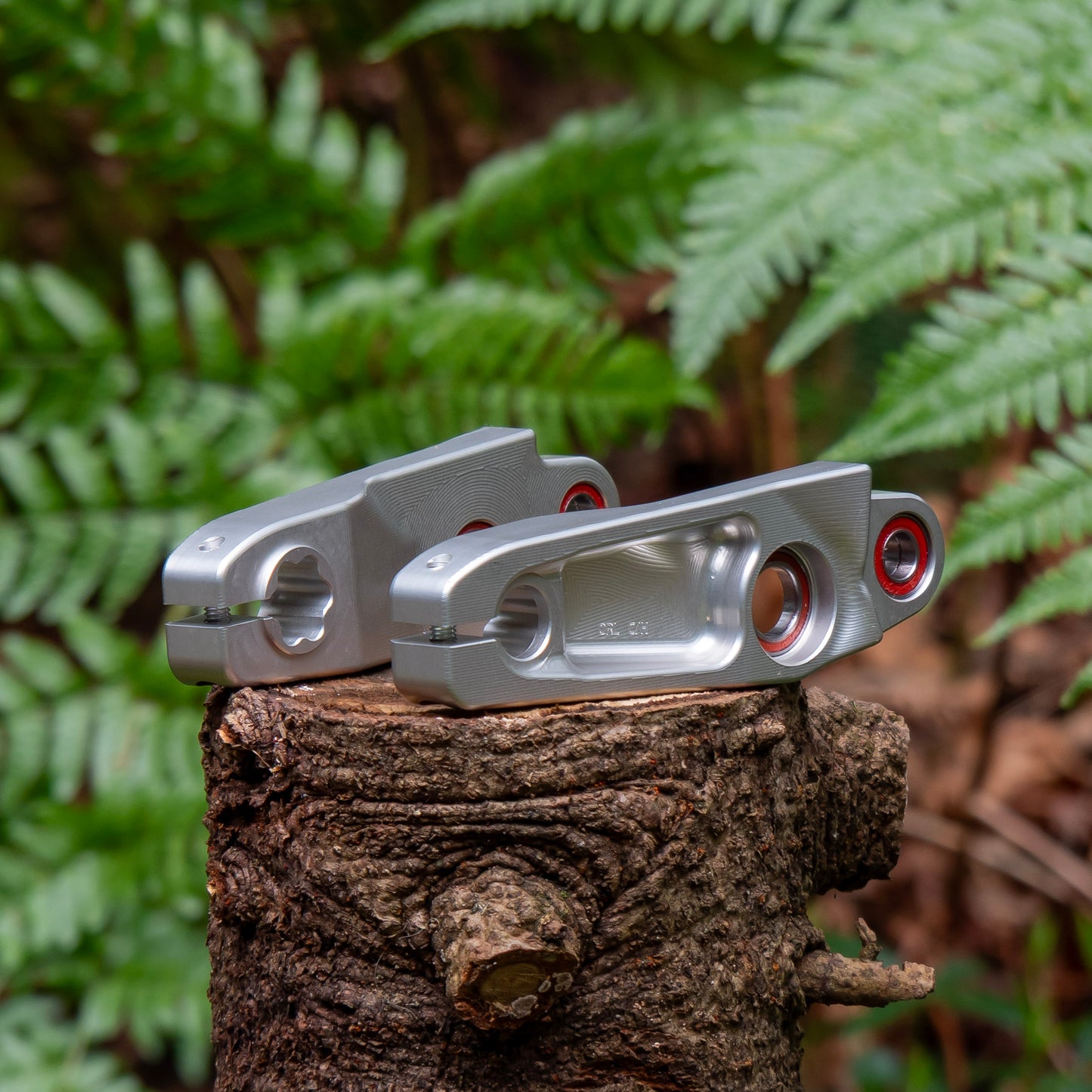

• Colors: Black, Silver
• Weight: 330 grams

Compatibility:

• All 2020 to 2022 carbon Rise frames with splined pivot axle
• We have now seen this both fit AND not fit aluminum frames from this same date range. If you have an aluminum frame please be aware that you might loose some paint. There are no structural concerns here so if you feel handy with a file all you have to do is take a little bit off.
