Stumpjumper LT Link (2018-2020)

This link is compatible with the 2018-2020 Stumpjumper EVO, Stumpjumper, and Stumpjumper ST.

Our link for the 2018 to 2020 generation of Stumpjumpers gives the suspension 70% more progression as well as an increase in travel. This allows the bike to be run with a stiff enough spring to prevent harsh bottom outs, without having to compromise on small bump sensitivity or ride height. For riders on air shocks, fewer volume spacers can be used to achieve the same bottom out resistance, opening up a wider usable range for those dealing with lots of volume spacers as well. As a result, the suspension can handle larger hits better than ever while maintaining loads of traction in rough terrain. The Stumpjumper LT link truly maximizes the bike’s descending capabilities.

The link maintains the stock ride height of the bike. In doing so, it leaves the Stumpjumper’s pedaling performance unaffected. This means all the added descending performance doesn’t come at a cost when it comes to pedaling back up.

The Stumpjumper link opens up more room for tuning as well. By making the suspension no longer reliant on things like damping, volume spacers, or progressive springs to avoid bottom outs, they have a larger usable range since they don’t need to be kept around a certain value for bottom outs. For example, compression damping can be backed off to make the shock more active over small bumps, since it no longer has to be relied on to keep the bike from blowing through its travel.

Specifications:

• Fits Stumpjumper EVO, Stumpjumper, and Stumpjumper ST (2018-2020)
• Travel: 145mm (with stock 210×50mm shock for 29″ bikes)
• Travel: 160mm (with stock 210×52.5mm shock for 27.5″ bikes)
• 70% more progressive than stock link
• Keeps geometry identical to stock geometry
• Sealed Enduro MAX bearings

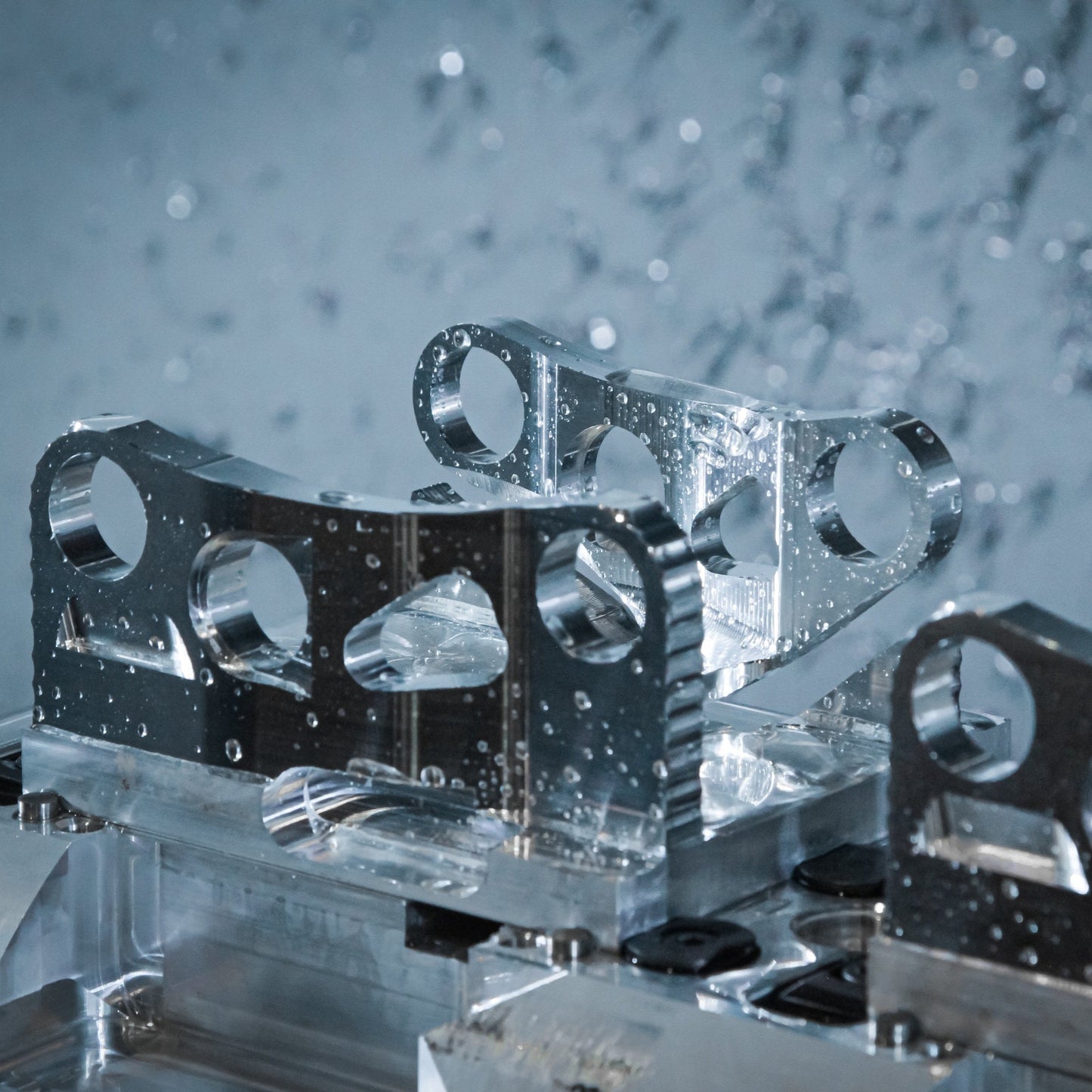

• CNC’d out of 6061-T6 Aluminum
• Colors: Black, Silver, Orange
• Weight: 161 grams

Product Compatibility, Setup, Fit, & Installation Information.
